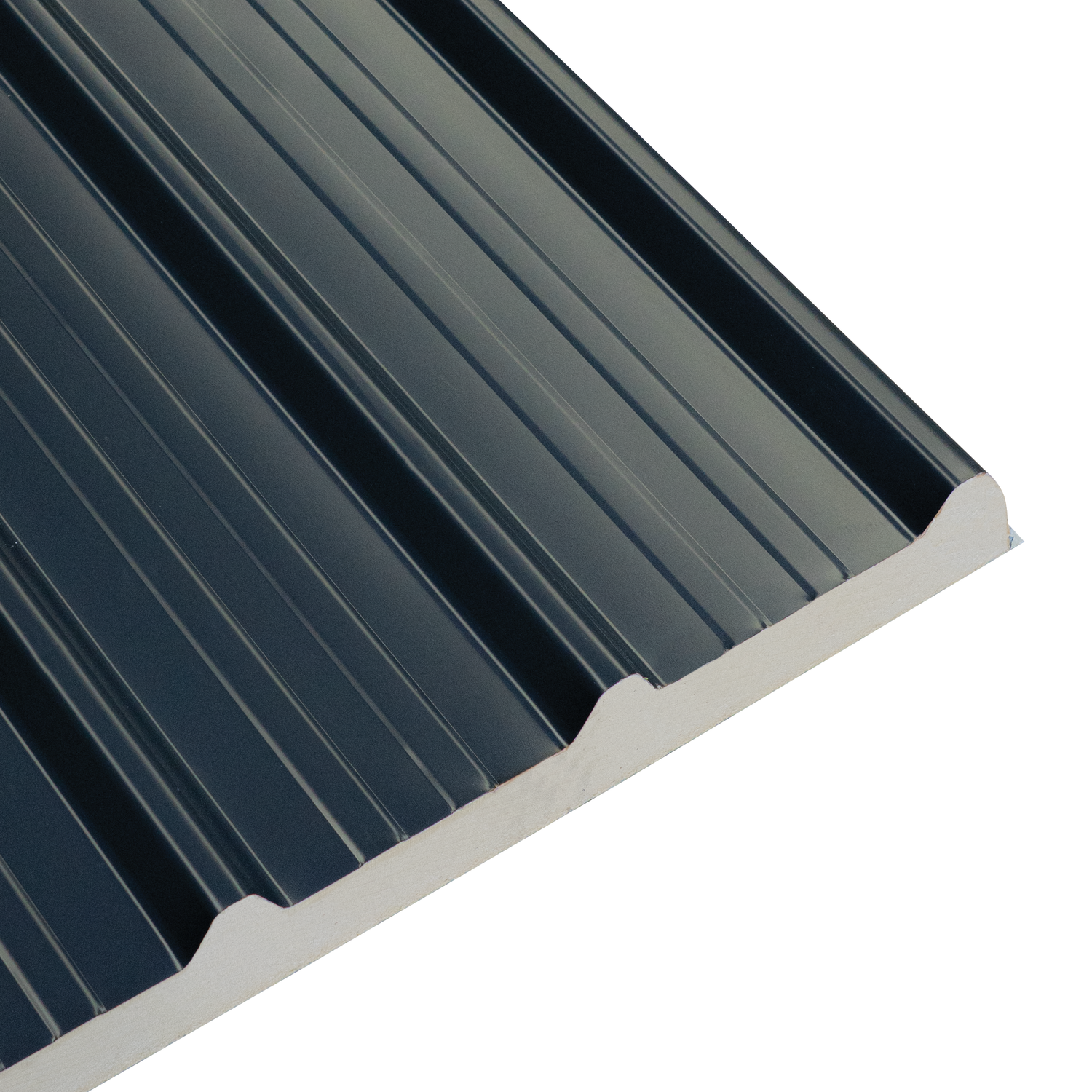

Insulated Roof Panel PIR 80mm
High-performance insulated roof panel designed for pitched roofs from 4°. A rigid PIR core bonded between steel sheets delivers excellent thermal efficiency, strong spanning capability and rapid installation — ideal for agricultural, commercial and industrial roofing.
At a glance
-
Minimum pitch: 4°
-
Cover width: 1000mm
-
Insulation core: PIR (Polyisocyanurate), ~40 kg/m³
-
Fire rating: B-s2,d0 (EN 13501-1)
-
External fire performance: BROOF (t4)
-
Sheet build: 0.5mm outer sheet / 0.5mm liner
U-values & weights
| Panel thickness |
U-value (W/m²K) |
Weight (kg/m²) |
| 80mm |
0.25 |
9.0 |
U-values calculated in accordance with EN 14509.
Dimensions (stock)
| Stocked lengths |
3000mm, 4000mm, 5000mm, 6000mm, 7000mm |
| Cover width |
1000mm |
| Profile height |
33mm |
| Rib spacing |
250mm centres |
| Cut-back |
75mm |
Load / span (80mm only)
Characteristic loads (CC1, L/200). Loads in kN/m². Spans in metres.
Characteristic Wind / Snow Load (Pressure)
| Span condition |
0.60 |
0.80 |
1.00 |
1.20 |
1.50 |
2.00 |
2.50 |
| 1 Span |
5.95 |
4.80 |
4.06 |
3.55 |
3.02 |
2.40 |
2.14 |
| 2 Span |
4.66 |
3.93 |
3.42 |
3.05 |
2.66 |
2.15 |
1.93 |
| ≥3 Span |
5.15 |
4.32 |
3.76 |
3.35 |
2.91 |
2.36 |
2.12 |
Characteristic Wind Load (Suction / Uplift)
| Span condition |
0.80 |
1.00 |
1.20 |
1.50 |
2.00 |
2.50 |
| 1 Span |
6.06 |
5.38 |
4.88 |
4.34 |
3.75 |
3.35 |
| 2 Span |
4.72 |
3.94 |
3.42 |
2.91 |
2.38 |
2.05 |
| ≥3 Span |
5.76 |
4.78 |
4.12 |
3.44 |
2.75 |
2.33 |
Always check both pressure and suction for your site conditions and roof design. CC1 classification with maximum deflection L/200.
Reference standards
-
EN 14509: Factory-made double skin metal faced insulating sandwich panels
-
EN 13501-1: Fire classification of construction products and building elements
-
EN 13501-5: External fire performance classification (BROOF)
