90° Internal Corner Barge Flashings 3m Polyester
90° Internal Corner Barge Flashings 3m Polyester
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Loading delivery prices…
Delivery prices are shown in your basket and at checkout, or call 01278 228670.
| Delivery zone | Price | Typical lead time |
|---|---|---|
| Collection from our Highbridge trade counter | Free | – |
Not available to order online (please call 01278 228670): Northern Ireland, Scottish islands, Channel Islands.
Prices are shown ex VAT. VAT at 20% is added at checkout. Enter your postcode to see which zone you are in and your exact price.
Most orders come on a rigid lorry or artic with offload. Smaller loads may come by flatbed van, which has no offloading machine, so please have someone on hand to help unload.
Key facts
- Colours
- Anthracite, Citroen Red, Dark/Moss Green, Goosewing Grey, Juniper Green, Slate Blue, Van Dyke Brown, White
- Delivery
- Delivered kerbside by lorry in 6-10 working days.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product
Overview

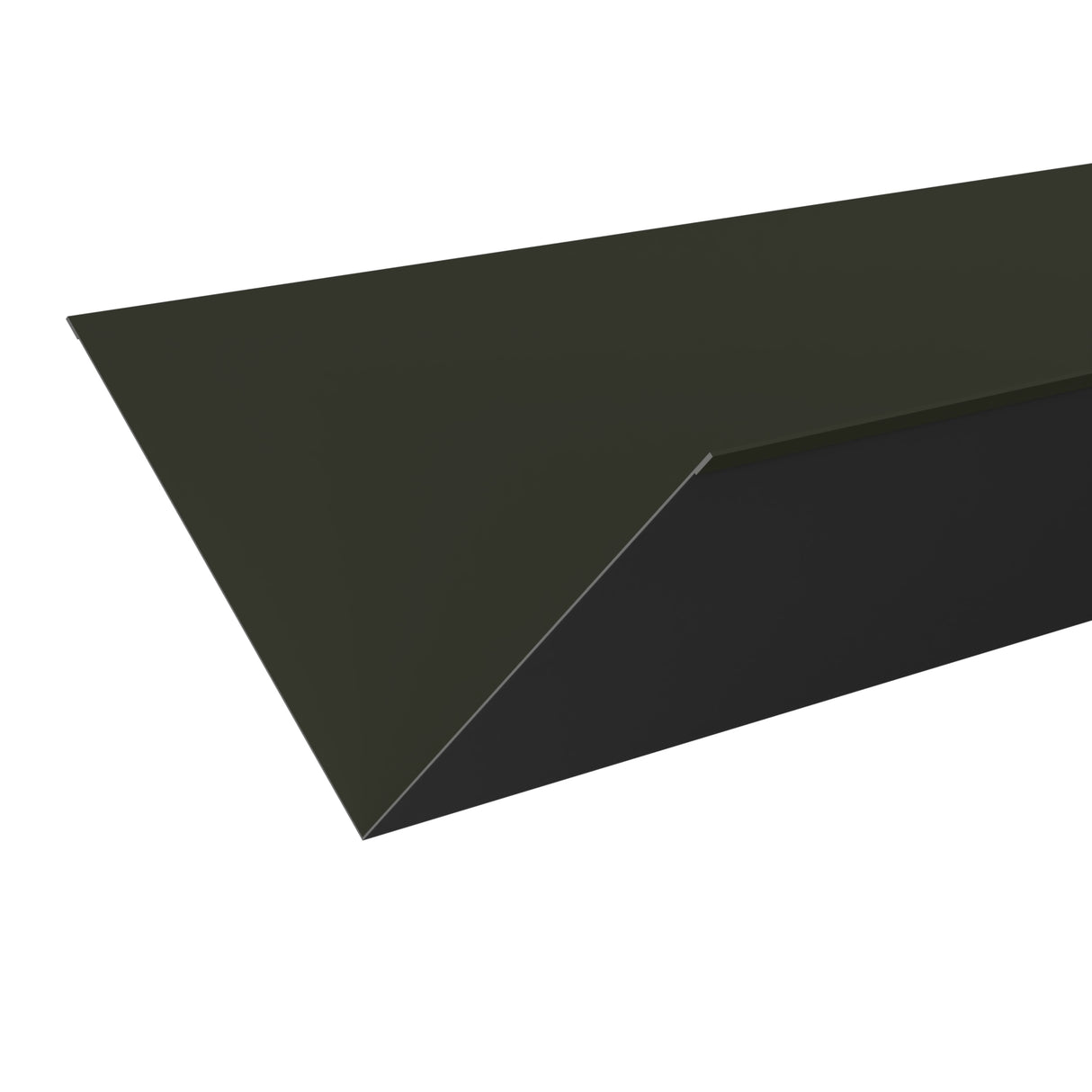

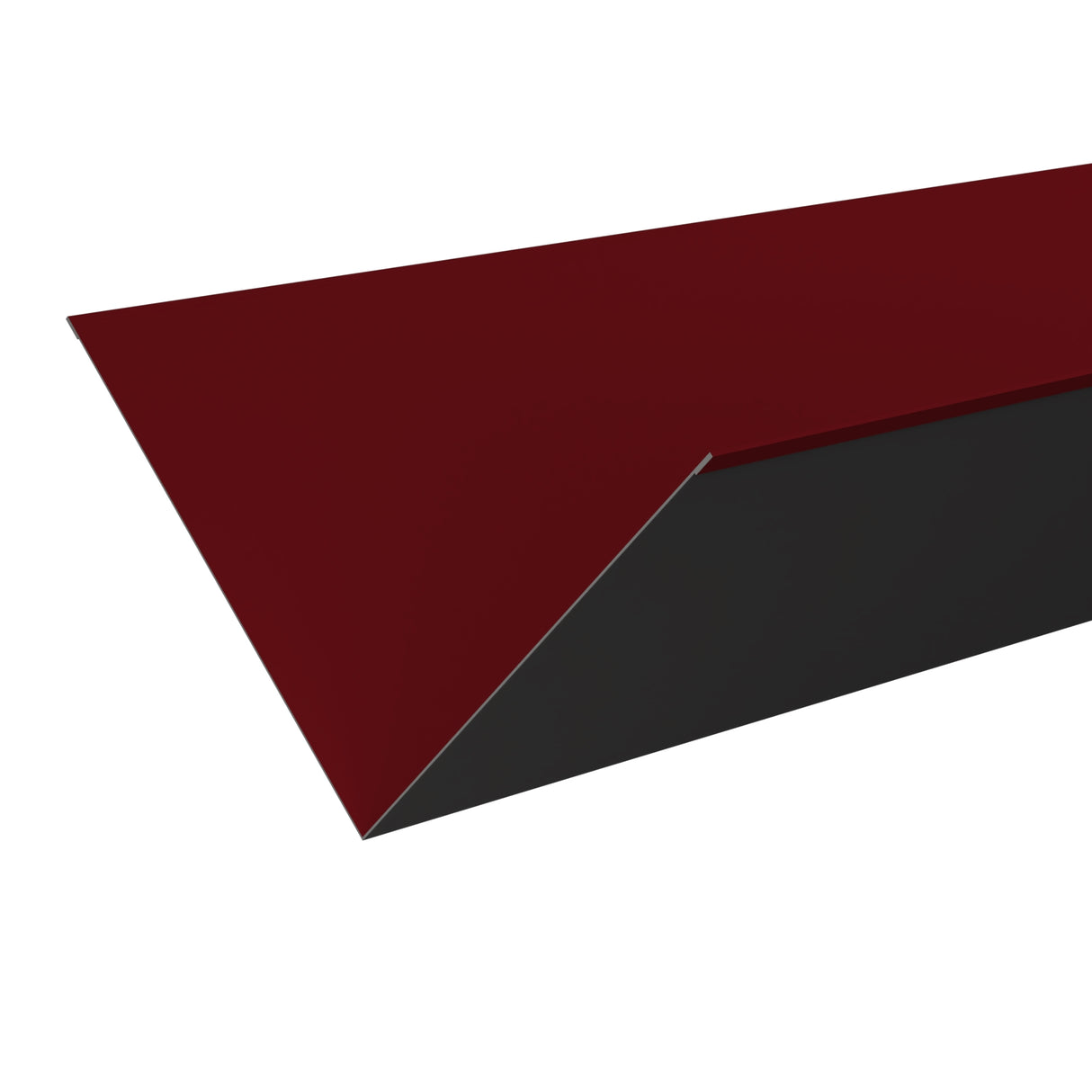

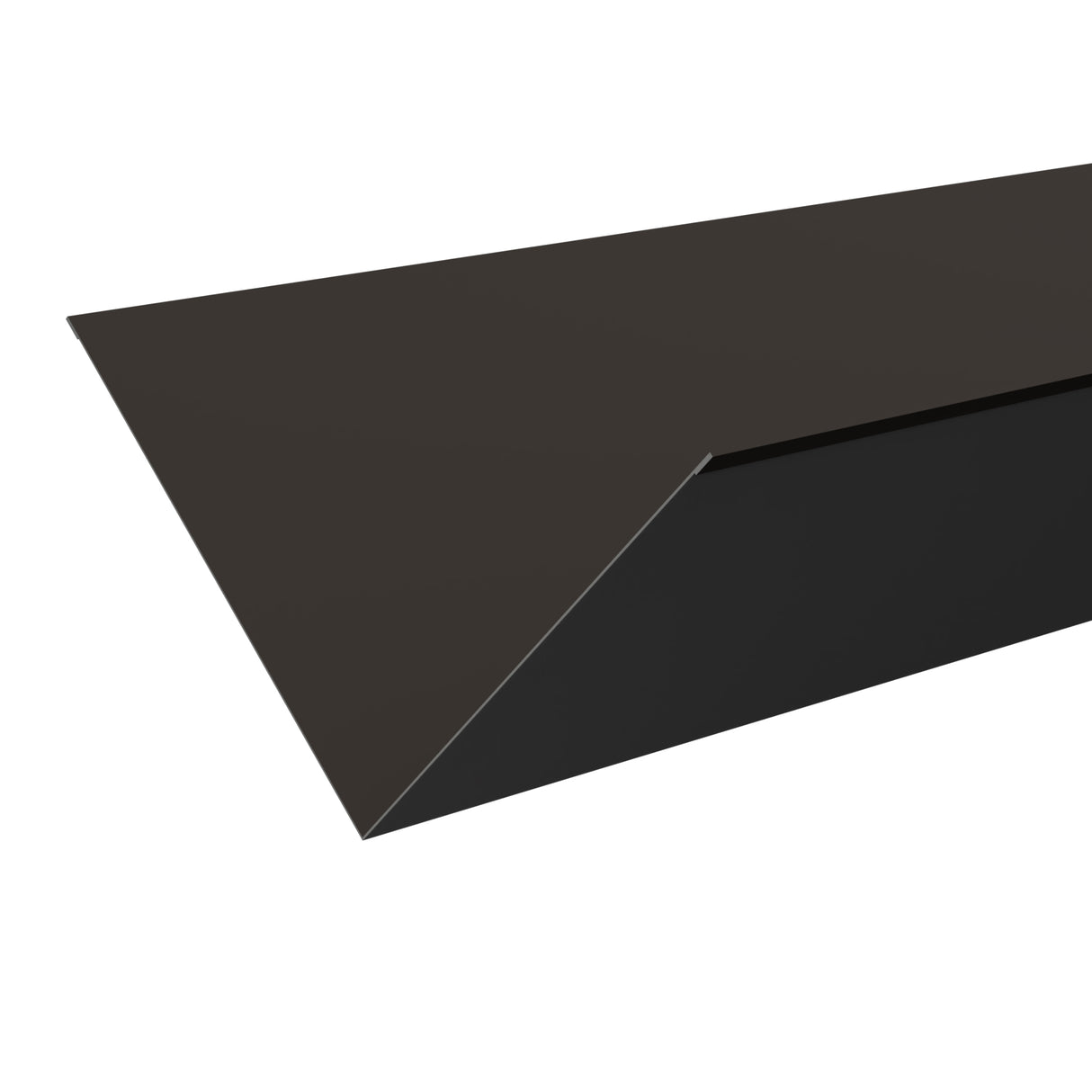

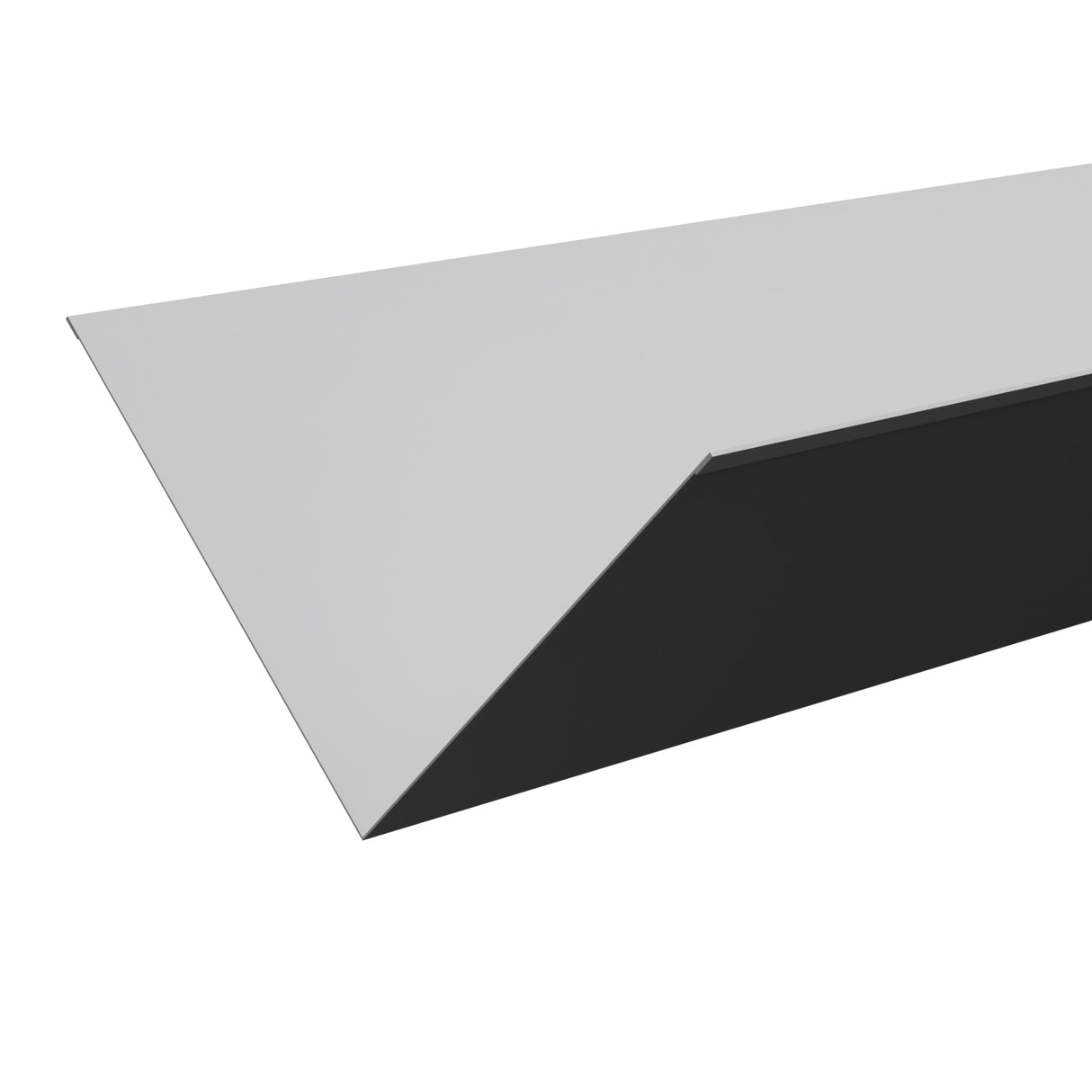

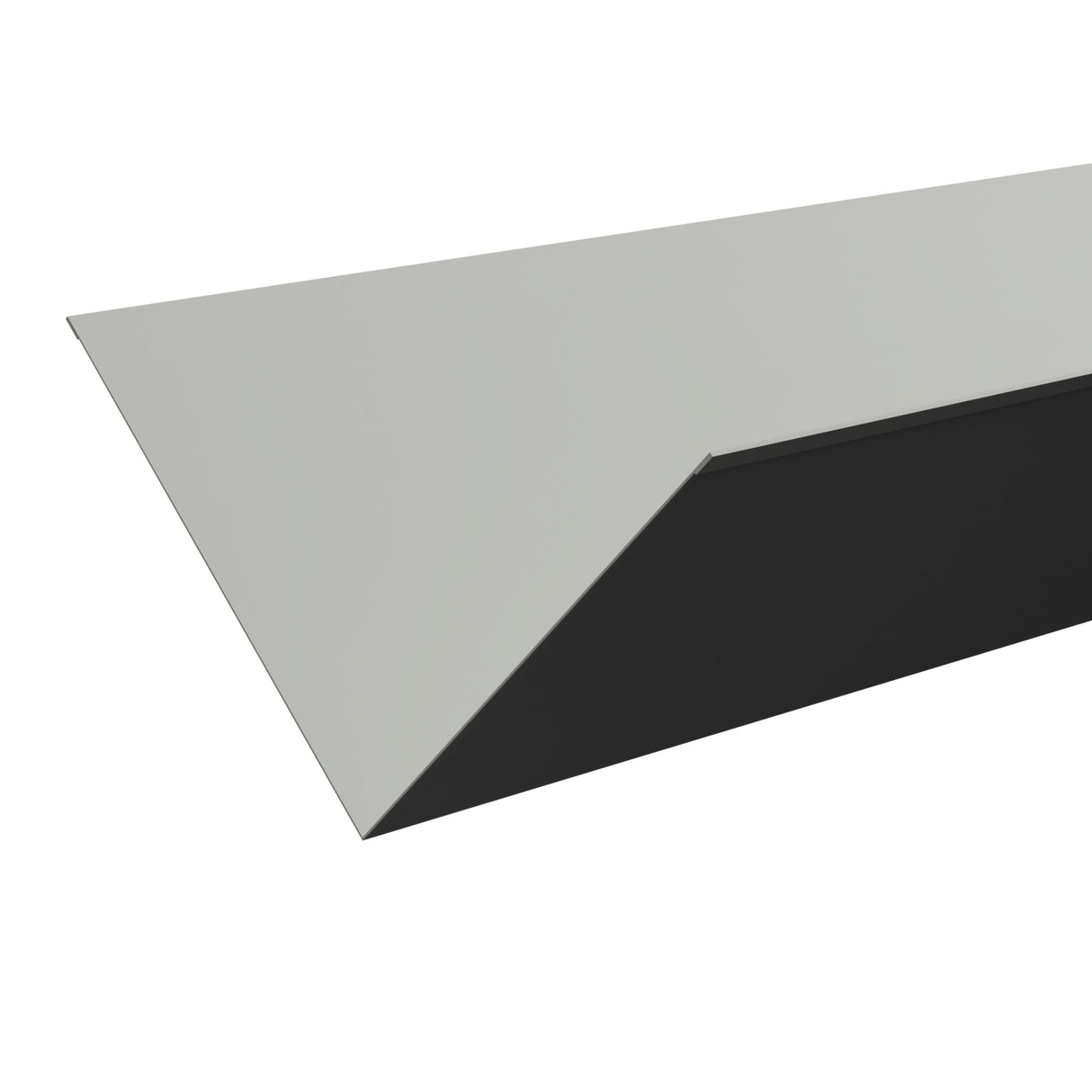

Briarwood 3m 90 Degree Internal Corner Barge with Polyester Paint Coating
The Briarwood 90 Degree Internal Corner Barge Flashings, crafted at our Highbridge Headquarters, are designed for use inside buildings or for external joins where the corner faces inward. Similar to an external corner barge, these internal corner barge flashings have the colour-coated side on the reverse to ensure a seamless finish on inward-facing joins.
Each barge flashing is pre-folded to a 90-degree internal angle and features a flexible tolerance of 10–15 degrees in either direction, making it adaptable to various structural designs.
The durable Polyester Paint coating provides lasting protection and is available in a range of colours, ensuring a cohesive look with our roofing sheets while enhancing the appearance of your building.
Each internal barge flashing includes a 10mm safety welt for added strength and safer handling during installation.
Our standard 3-metre barge flashings can be customised to your required size through product variant options. For bespoke measurements, please provide precise details, and we’ll work to meet your specifications.
To install, secure the barge flashings to the underlying roofing sheet using st22 stitching screws, allowing a minimum overlap of 200mm between adjoining flashings.
These 90 Degree Internal Corner Barge Flashings are compatible with our 13/3 Corrugated, 32/1000 Box Profile, and 34/1000 Box Profile Roofing Sheets.
Our Polyester Paint-coated Internal Barge Flashings are supplied with a protective film. To prevent it from adhering, remove this film after installation or if storing in direct sunlight or damp conditions.
Specifications:
- Length: 3.0 metres
- Safety Welt: 10mm
- Angle: 90º
