All of our Insulated Roofing & Cladding Panels have been fire tested in accordance to BS EN 13501-1 and achieves Class Bs2d0.
Our Insulated Composite Sandwich Panels are available in stock lengths in one metre increments. Our lengths consist of: 3, 4, 5, 6 and 7m. Our PIR panels have an additional 75mm (0.75m) cutback.
Did you know that one of our 91,000 sqf warehouses is filled with Insulated Panels? Briarwood always make sure that our stock levels are manufactured to be above stock-max to ensure that we can fulfill all sized insulated panel orders.

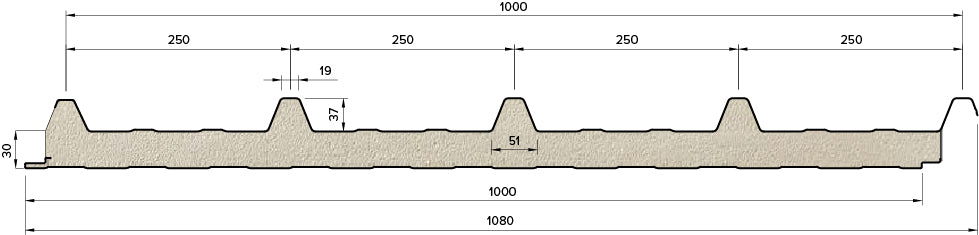

Our 30mm Eco Insulated Panels come with 5 ribs and have one metal sheet which is on the top of the insulated panel, followed by a eco foil on the underside. This panel has excellent load-bearing performance, and due to its versatility, it can be used within the building/construction industry for commercial, industrial, residential and agriculture purposes.
|
Length (m) |
3.075m, 4.075m, 5.075m, 6.075m, 7.075m |
|
Cover Width (mm) |
1000mm |
| Insulation Thickness and panel weight |
30mm: 7.42 kg/m² |
| Material | Metal |
| Coating | Polyester |
| Insulation Thickness (mm) |
Transmittance U (W/m²K) |
Thermal Resistance R (m²K/W) |
Rw (dB) |
| 30mm |
0.71 |
1.41 |
23.0 |
| 80mm | 0.28 | 4.55 | 25.0 |
| Density with film |
40 Kg/m³ |
| Density without film |
36-38 Kg/m³ |
| Thermal conductivity |
λ = 0.023 W/mK |
| Adhesion value |
1 Kg/cm² |
| Compressive strength |
≥ 1.2 Mpa |
| Traction resistance |
≥ 0.10 Mpa |
| Cutting resistance |
≥ 0.10 Mpa |
| Water absorption |
≥ 95% |
| Operating temperature |
from -40°C to +80°C |
| Core | Polyurethane rigid foam (PUR) |
Briarwood are proud manufacturers of Composite Insulated Sandwich Panels for Roofing & Cladding applications.
We pride ourselves on the vast amount of manufacturing insulated panel stock we hold at our Highbridge Headquarters - allowing us to deliver at unbeatable rates and timeframes.
Made by Briarwood at our plant in Italy, alongside our Big 6 fibre cement.
Reach out to us to learn more about setting up an account with Briarwood! Our team of specialists can help you build orders, arrange delivery and provide you with an unbeatable service.
Apply for an account
Our 30mm Eco Insulated Panels come with 5 ribs and have one metal sheet which is on the top of the insulated panel, followed by a eco foil on the underside. This panel has excellent load-bearing performance, and due to its versatility, it can be used within the building/construction industry for commercial, industrial, residential and agriculture purposes.
|
Length (m) |
3.075m, 4.075m, 5.075m, 6.075m, 7.075m |
|
Cover Width (mm) |
1000mm |
| Insulation Thickness and panel weight |
30mm: 7.42 kg/m² |
| Material | Metal |
| Coating | Polyester |
| Insulation Thickness (mm) |
Transmittance U (W/m²K) |
Thermal Resistance R (m²K/W) |
Rw (dB) |
| 30mm |
0.71 |
1.41 |
23.0 |
| 80mm | 0.28 | 4.55 | 25.0 |
| Density with film |
40 Kg/m³ |
| Density without film |
36-38 Kg/m³ |
| Thermal conductivity |
λ = 0.023 W/mK |
| Adhesion value |
1 Kg/cm² |
| Compressive strength |
≥ 1.2 Mpa |
| Traction resistance |
≥ 0.10 Mpa |
| Cutting resistance |
≥ 0.10 Mpa |
| Water absorption |
≥ 95% |
| Operating temperature |
from -40°C to +80°C |
| Core | Polyurethane rigid foam (PUR) |
