20/1000 Liner Profile Sheeting Polyester Coated Over Purlin Sheet

Overview Specifications Documents Enquire
1 2
Price Match Available
Made In Britain
Trusted British Manufacturer
Collect Same-Day

20/1000 Liner Profile Sheeting Polyester Coated Over Purlin Sheet

Price per metre £11.79 excl VAT £14.15 inc VAT
Colour
Thickness
Nationwide delivery: 6-10 working days
Min 1.0m, max 7.1m, in 0.01m steps.
Price Match Available
Made In Britain
Trusted British Manufacturer
Collect Same-Day
Total — excl VAT — inc VAT
Check delivery to your postcode

Not sure what you need?

Try our roofing calculator →

Popular right now
Lots of people have looked at this recently

Delivery and Shipping

Loading delivery prices…

Not available to order online (please call 01278 228670): Northern Ireland, Scottish islands, Channel Islands.

Prices are shown ex VAT. VAT at 20% is added at checkout. Enter your postcode to see which zone you are in and your exact price.

Most orders come on a rigid lorry or artic with offload. Smaller loads may come by flatbed van, which has no offloading machine, so please have someone on hand to help unload.

20/1000 Liner Profile Sheeting Polyester Coated Over Purlin Sheet

excl. VAT incl. VAT

Key facts

Cover width
1000 mm
Lengths
Cut to the length you need, from 1.0 m to 7.1 m.
Colours
Black, White
Delivery
Delivered kerbside by lorry in 6-10 working days.
How to fix
Inner skin only, never the outside sheet. Check whether it goes over purlin or under purlin before the first sheet goes up.
Over purlin: lay it on the purlins, pans on the purlin, crowns up. Under purlin: fix it to the underside of the purlins, pans against them, crowns down.
Side lap one crown, crown on crown, taped. End lap 150 mm minimum, on a support, with a sealant strip across the lap on the fixing line.
Five fixings per sheet, one in every pan, at every support. Never through a crown.
Fix and seal the liner fully before any spacer bracket goes on.
Support centres and screw length: as set by your building's design; ask us if unsure.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Metal Profiled
Advantages

Made in Somerset

Made in Somerset

All of our metal single skin roofing and cladding sheets are made at our Highbridge site in Somerset.

Custom & Stock Lengths

Briarwood have a vast amount of pre-cut stock ready for immediate delivery, however did you know that we can do custom lengths for you? Reach out to our sales team to find out more!

Range of Profiles

We make 32/1000, 34/1000, 13/3, 10/3, 8/3 and 20/1000 profiles in a variety of colours. Buy online: 32/1000, 34/1000 or 13/3 corrugated. For any other profile, contact our sales team.

Approved
By

CE Marked CE Marked
UKCA Marked UKCA Marked
Made in Somerset Made in Somerset
RIDBA RIDBA

Product
Overview

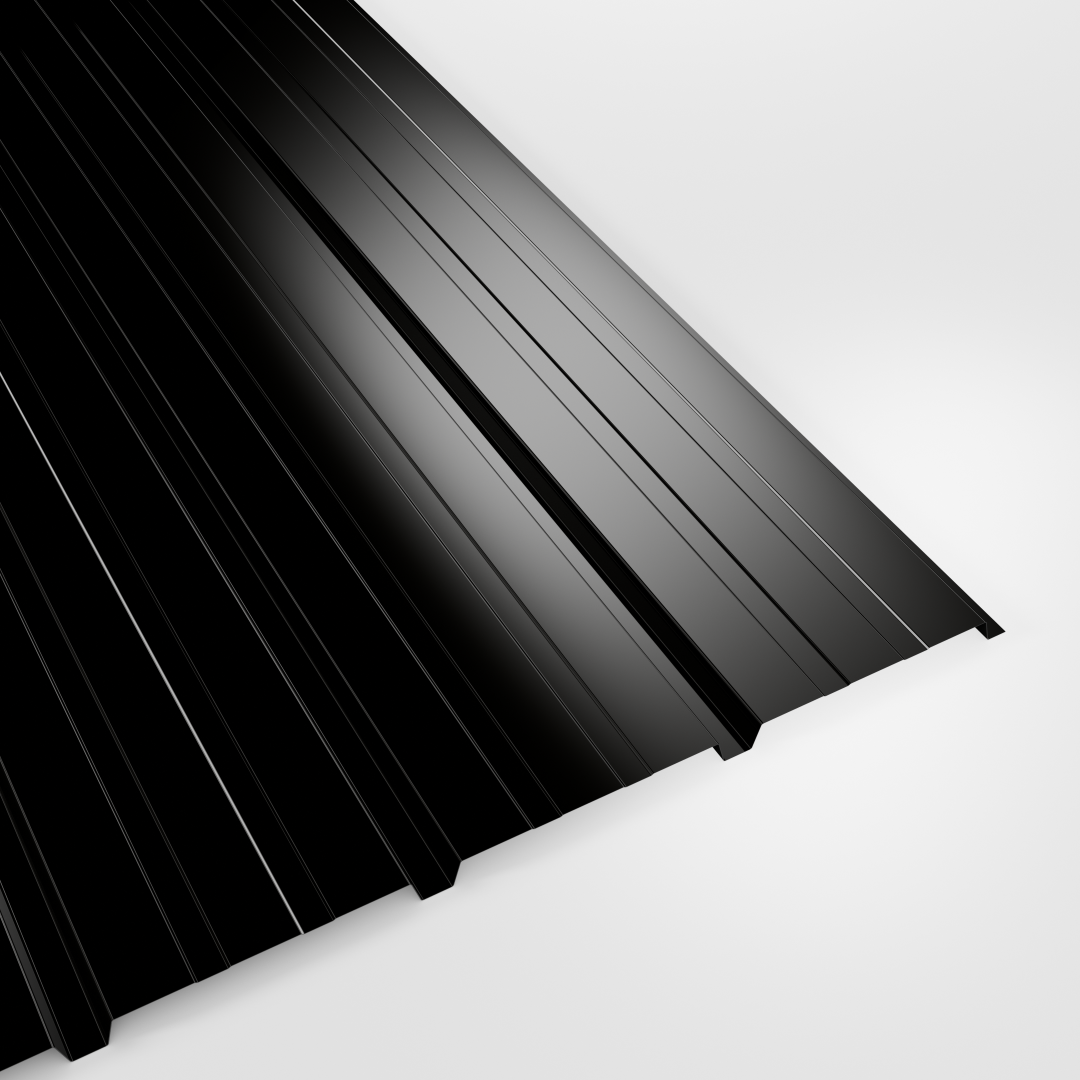

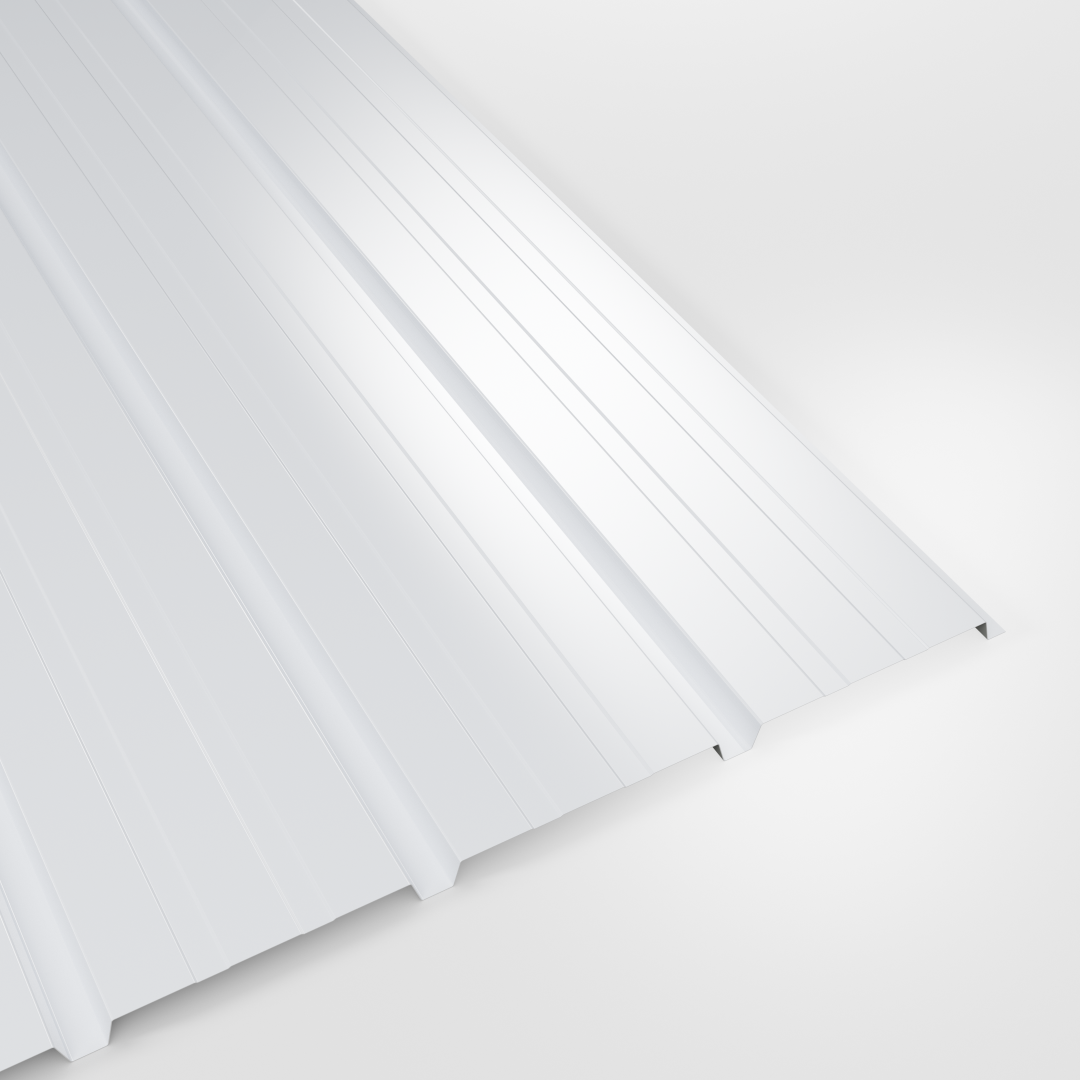

20/1000 Liner Profile Over Purlin Sheet

The inner skin of a twin-skin roof or wall. Laid over the purlins or rails, it gives the inside of the building a clean, finished steel lining, with insulation and the outer sheet built up on top. Smooth polyester paint finish in White or Black.

Made to order at our Highbridge site and cut to the exact length you need.

Where it goes

  • Roof, over purlin: laid on the Z purlins, then spacer brackets and top-hat bars, insulation, and an outer sheet such as 32/1000 Box Profile
  • Wall: fixed to the outside face of the rails, with the same spacer, insulation and outer sheet built over it
  • An inner skin only, never the outside sheet

Colours

  • Black
  • White

Product Details

  • Profile: 20/1000 Liner Profile, Reverse / over purlin, two flat-topped swages in each pan
  • Finish: Smooth polyester paint coating on galvanised steel
  • Thickness: 0.5mm or 0.7mm
  • Cover width: 1000mm
  • Profile depth: 20mm
  • Weight: 4.59 kg/m² at 0.5mm, 6.43 kg/m² at 0.7mm
  • Sheet lengths: Cut to length, 1m to 7.1m
  • Laps: One crown side lap, taped; 150mm minimum end lap on a support
  • Manufactured by: Briarwood, Highbridge Headquarters
  • Minimum Order Quantity: None
  • Manufacture & Delivery Timeframe: 6–10 working days

Key facts

  • Made: Made in Somerset by Briarwood.
  • Thickness: Black 0.7 mm; White 0.5 mm or 0.7 mm.
  • Delivery: By lorry to the kerbside, 6 to 10 working days. We deliver to England, Wales and mainland Scotland.
  • Fixings: Five per sheet, one in every pan, at every support.

Product
Dimensions

Cover Width:
1000 mm
Pitch:
200 mm
Profile Height:
20 mm
Thickness:
0.5mm or 0.7mm
